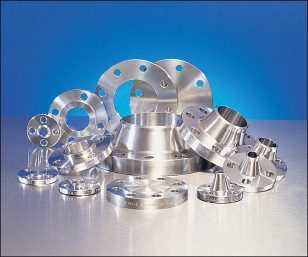

Standard Flanges (Weld-neck, Slip-on, Socket-weld,
Lap-joint, Blind and Screwed Types) are manufactured by Gold Tech Forge to
specifications of ASME B16.5, ASME B16.47, ASME B16.48, BS EN 1092, BS
4504, API-605, API-590, MSSSP44, DIN 2632 to 2638, DIN 2576, 2642, 2527,
2566. Flanges cover full range of pressure ratings of these
specifications (150 – 2500 psi for ASME & PN6-PN400 for DIN / EN
flanges). .
Rolled & Forged Flanges
Gold Tech Forge manufactures various type of carbon steel, alloy steel,
stainless steel and duplex steel as per customer recognized material
standard (ASME/ANSI/DIN). The flanges are also manufactured as per
customer specific requirement/ drawings.
Weld Neck Flanges
Application: These are mainly used on heat coupling of pipes in the most
difficult cases, i.e., when bending stress on the coupling, due to
expansion of section or to other forces, is foreseen.
Slip on Flanges
Application: Used in quick assembly to save the cost, these are also
used in less strict requirements in terms of length of pipe section.
Socket Weld Flanges
Application: Recommended for orifice flanges. These work as substitute
for slip-on flanges in the cases where the diameter of the tube is very
small and working pressure is very high.
Lap joint Flanges
Application: These are primarily used when quick assembly and
disassembly of pipeline section is required under limited working
pressure.
Threaded Flanges
Application: These flanges are used in special requirements to work
under high temperature and pressure, making sure no welding joint is
made at the assembly.
